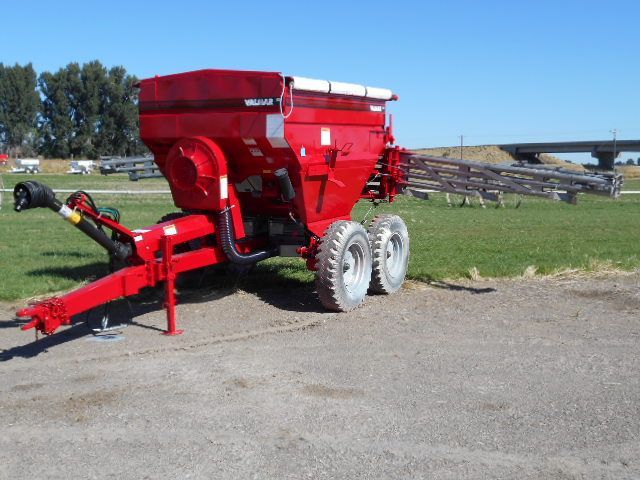

Hopper

• 170 cu. ft.

• 1 piece, 409 stainless steel construction with 2 component epoxy primer and 2 component cross linked acrylic top coat paint system

• Hopper bottom shut-off slide panels

• Roll tarp installed
•


Booms

• Available in 40 ft. or 36 ft. spread

• 304 stainless steel construction

• Break away boom tips

• 2.5 in. diameter tubes

• 6 deflectors per side

• Manual fold

• Self levelling
•


Metering System

• 304 stainless metering bottoms with 6 outlets per side

• 304 stainless steel, self cleaning metering rollers

• Manual half width shut-off on either side

• Rates up to 500 lb./acre at 5 MPH down to 5 lb./acre with optional small seed and herbicide kit

• Ground drive

• Hydraulically engaged

• 60 speed gearbox with 5% between settings

• Hydraulic metering drive options

• A basic drive supplied with hydraulic motor only for completion by customer with system of their choice – does not include radar, servo valve, encoders, controller/monitor, cables etc.

• A Rawson AccuRate® Drive complete with hydraulic lines that is compatible with many of today’s GPS systems

• A complete Raven System such as Viper Pro®, Envizio Pro® or SCS 660®
•


Fan

• 20 in. impeller

• 2-5 in. fan outlets

• PTO fan drive

1. > 1000 RPM CV driveline, 13⁄8 in. – 21T spline

2. > 19:4.12 pulley drive ratio

3. > 4 band belt with spring loaded idler tensioner


• Optional hydraulic fan drive


1. > 32 CC motor requires 23 GPM operating at 1885 PSI

2. > 3/4 in. hydraulic lines

3. > 3/4 in. couplers recommended

4. > 3*0 in. water column manifold pressure

5. > Case drain required

6. > 6.9:4.12 pulley drive ratio


Hydraulics

• Requires 1 remote to engage metering system

• Requires 2nd remote for optional hydraulic boom fold

• Requires additional remotes for optional hydraulic drives for fan and/or metering
•


Chassis

• Tandem walking beam

• Adjustable axle width with available tires: 16.5L x 16.1 (81-99 in.) or 9.00 x 20 (72-90 in.)

• 2.5 in. axles with 6 bolt hubs

• Single axle

• 550/60-22.5 tires/12 ply at 90 in. center to center

• Tire Dimensions – width 550 mm (21.7 in.)/OD – 1238 mm (48.7 in.)

• 2.75 in. axles with 8 bolt hubs
•
